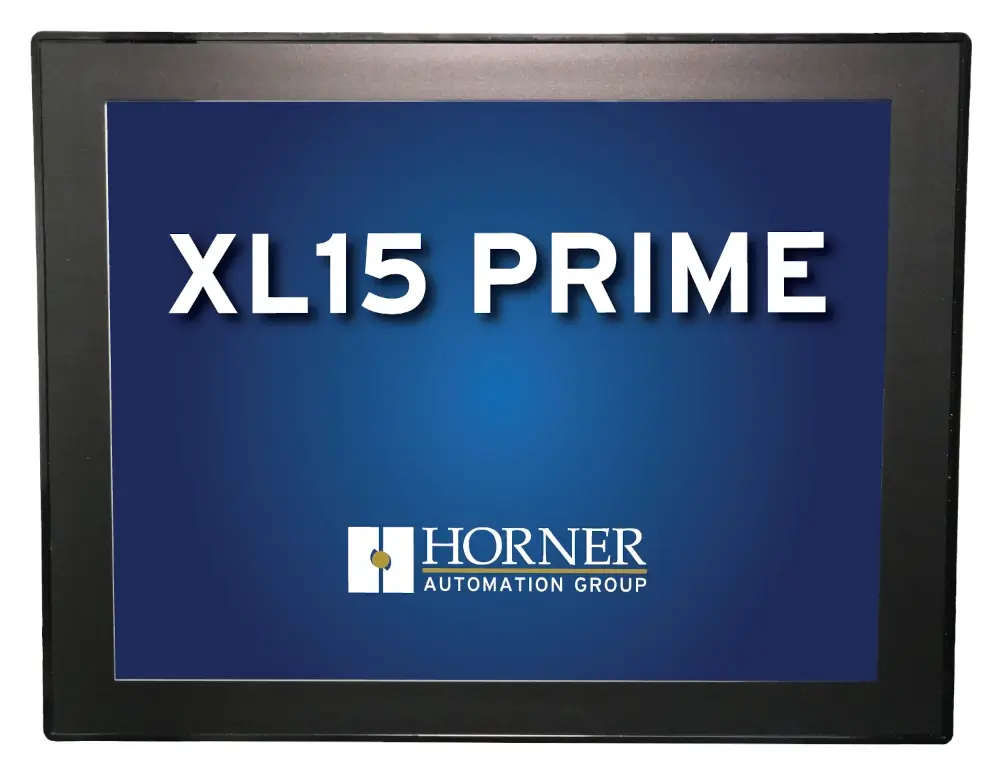

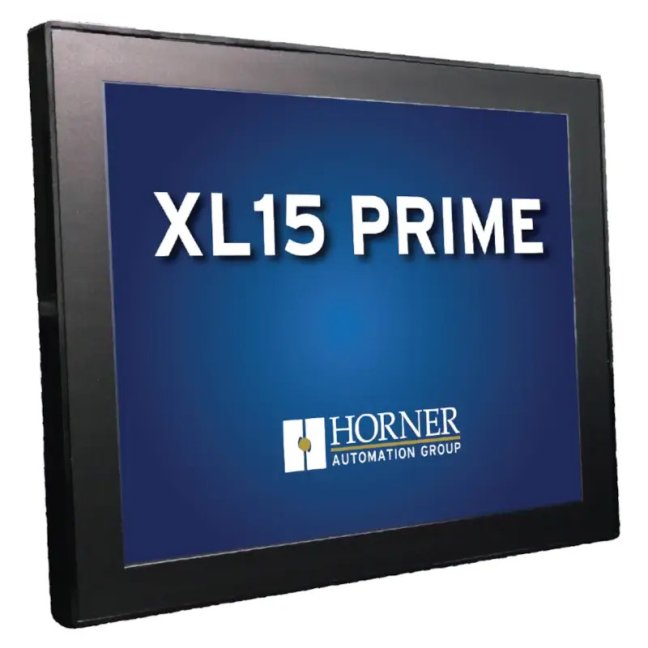

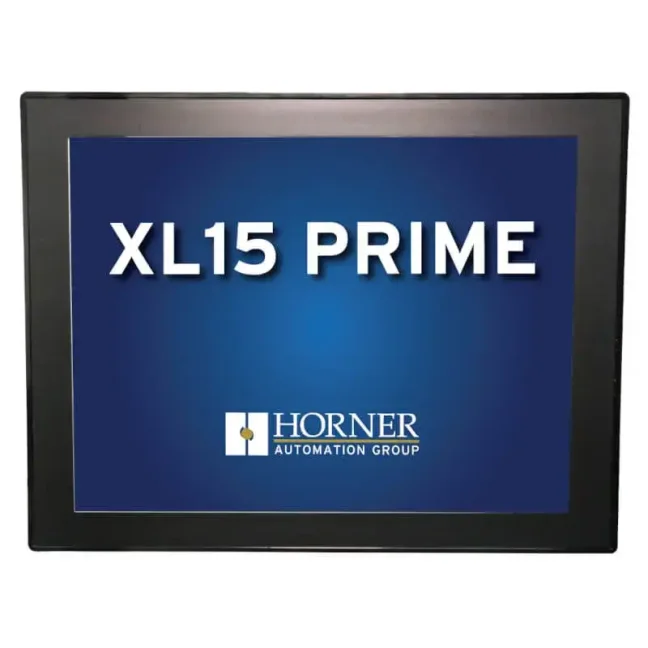

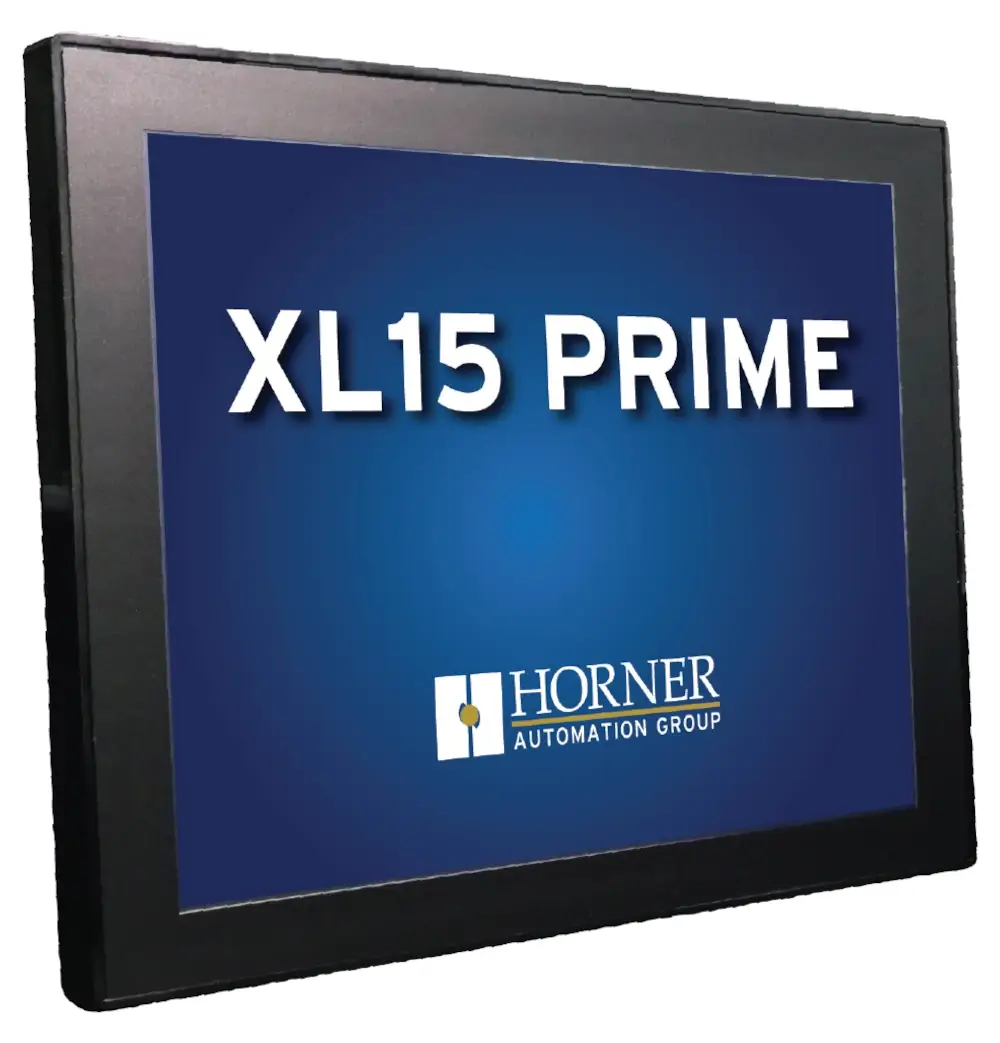

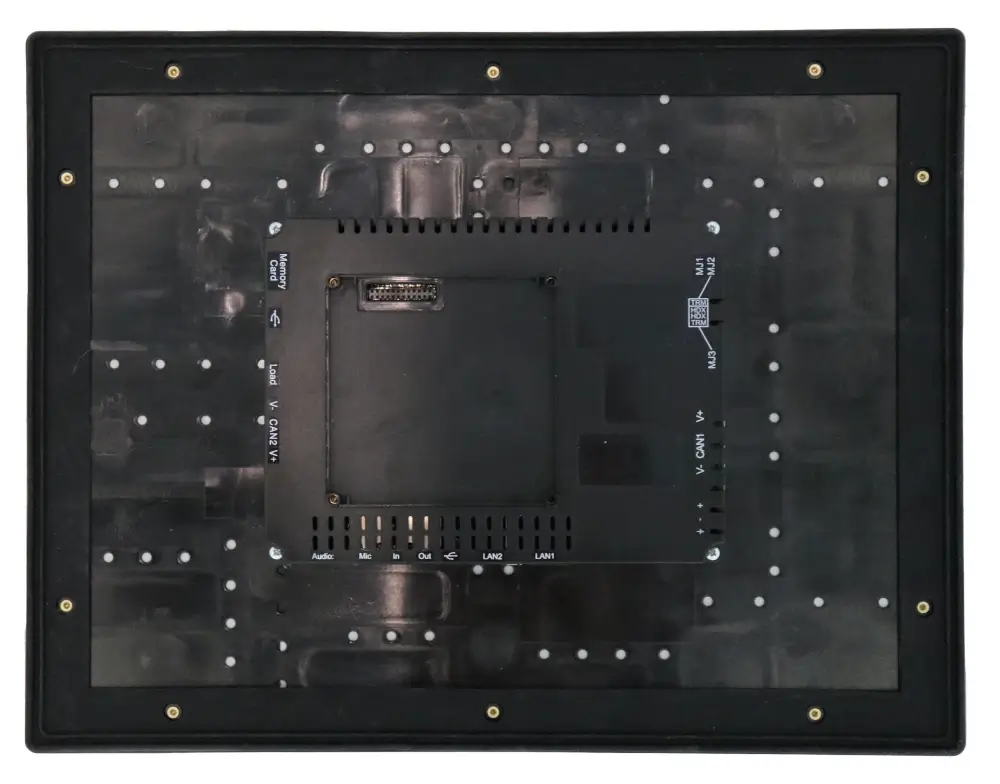

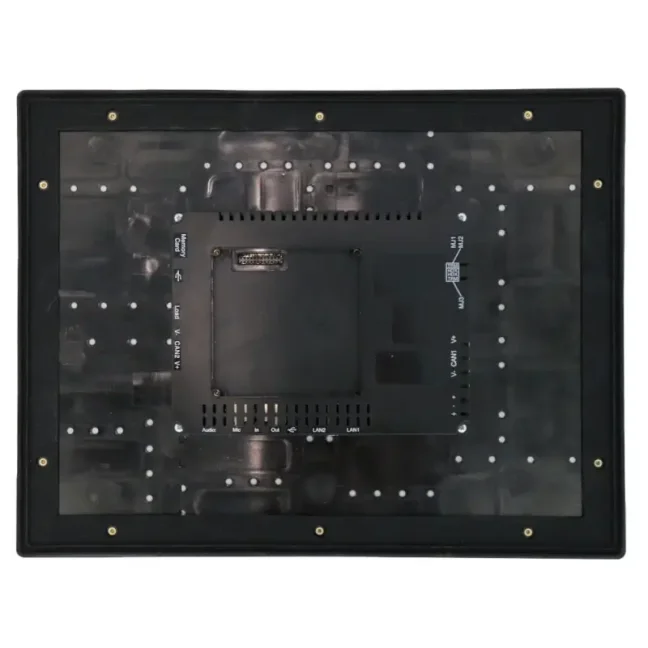

Horner XL15 Prime is an industrial panel with a 15" colour touchscreen that enables machine control and data visualization. It combines a logic controller (HORNER PLC) and operator touchscreen interface (HMI) in a single device. Depending on the model, you can choose the number and type of analog or digital inputs and outputs. If the built-in I/Os are not sufficient, they can be expanded via 2x Ethernet, 2x CAN or 3x serial interfaces.
It is ideal for production lines and machines with fast cycles and complex logic. Thanks to its powerful processor, it handles demanding tasks reliably and quickly. Engineers and integrators will appreciate its robust design and flexibility, which save time during both installation and operation.
Key Features:
15" TFT colour touchscreen (1024 x 768 px) with virtual control buttons
6 models based on input/output configuration:
HEXP751C100: no built-in I/O
HEXP751C112: 12x DI (4x HSC), 6x DO relay, 4x AI (12 bit)
HEXP751C113: 12x DI (4x HSC), 12x DO (2x PWM), 2x AI (12 bit)
HEXP751C114: 24x DI (4x HSC), 16x DO (2x PWM), 2x AI (12 bit)
HEXP751C115: 12x DI (4x HSC), 12x DO (2x PWM), 2x AI (14/16 bit), 2x AO (12 bit)
HEXP751C116: 12x DI (4x HSC), 12x DO (2x PWM), 6x AI (17 bit), 4x AO (12 bit)

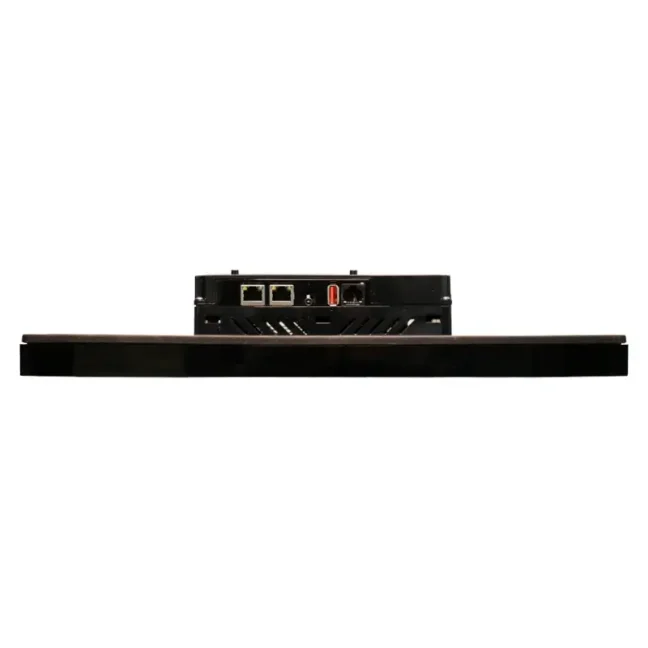

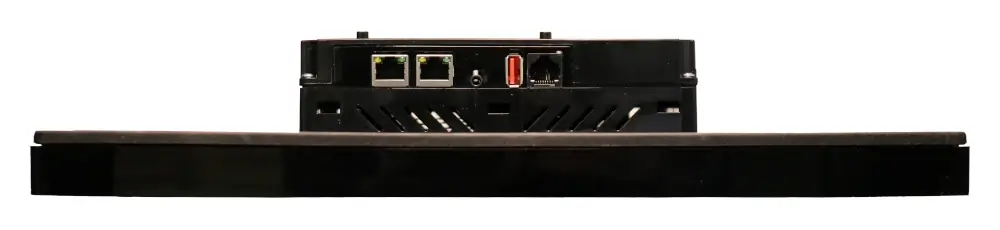

2x Ethernet port

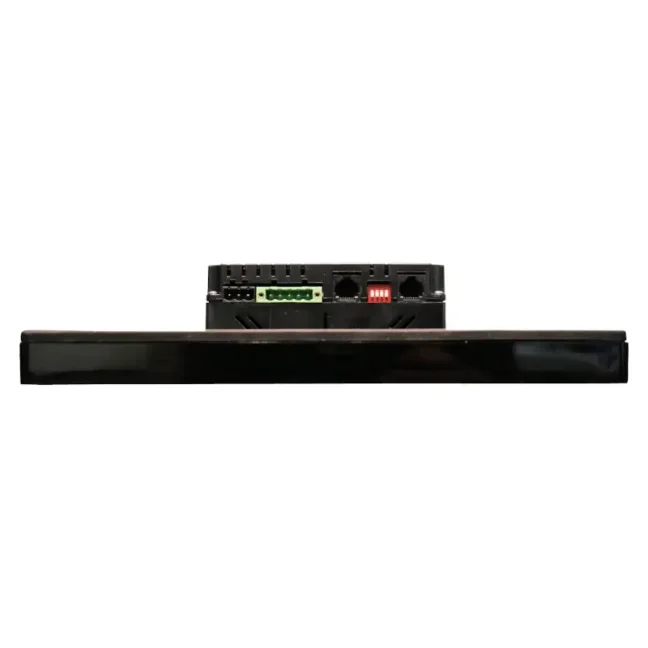

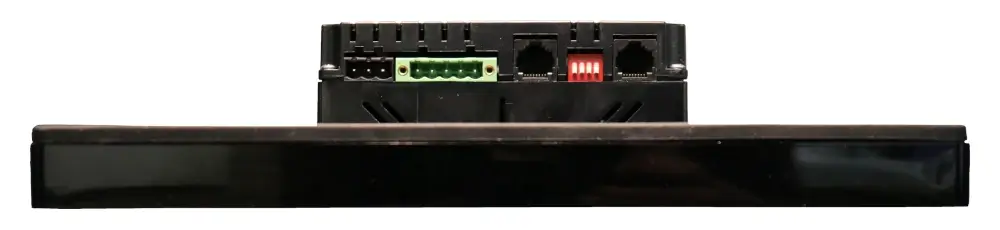

3x serial ports: 1x RS232/485 (MJ3 switchable between RS232 and RS485) and 1x RS232 + 1x RS485 (shared MJ1/2 connector with two simultaneously available ports RS232 and RS485)
2x CAN port
1x USB A (2.0), 1x USB C (2.0)
Power supply: 10–30 VDC, panel or DIN-rail mounting, operating temperature -10 to 60 °C
Programming in Cscape (IEC 61131-3), support for Ladder Diagram, online editing while running
Proprietary System-on-Module (SOM) with ARM processor and 2 MB application memory, logic scan rate up to 0.02 ms/kB
Why choose XL15 Prime?
All-in-one: PLC + HMI + I/O + communication interfaces
High performance for demanding applications: handles complex logic and fast machine cycles
Easy deployment: programming and visualization in free, intuitive Cscape software
Fast integration: ideal for machines, smaller production lines or retrofits
Extensive communication capabilities: connectivity with SCADA systems, OPC servers, and peripheral devices via Ethernet, CAN bus, and serial interfaces
System scalability: compatible with other Horner XL Prime models, easy integration into larger automation systems
Compact design: saves space in control cabinets while offering a powerful processor and intuitive touchscreen control
Remote access: via WebMI interface for monitoring and control from mobile, tablet or PC
File transfer via FTP: easy uploading and downloading of data (e.g. CSV or programs) between PLC and PC
Email alerts: automatic sending of alarms, status reports or data directly to email (requires configuration in Cscape)
Robust design: resistant to temperature, humidity, and vibration
The XL15 Prime panel is part of the so-called "XL Prime OCS Series", in which Horner offers compact panels XL4 Prime, X5 Prime, XL6 Prime, XLW Prime, XL7 Prime, XL10 Prime a XL15 Prime. All of them feature an integrated PLC, HMI, I/O, and communication interfaces. These panels differ in display size, number and type of inputs/outputs and expansion capabilities.
Control Unit (PLC)
Program memory: 2 MB (NVRAM, supports online programming)
Scan time: 0.02 ms/kB

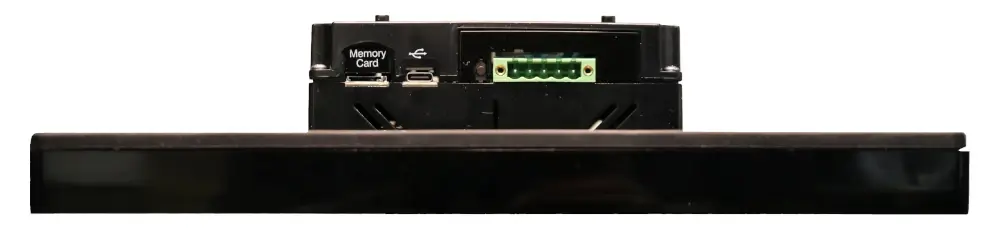

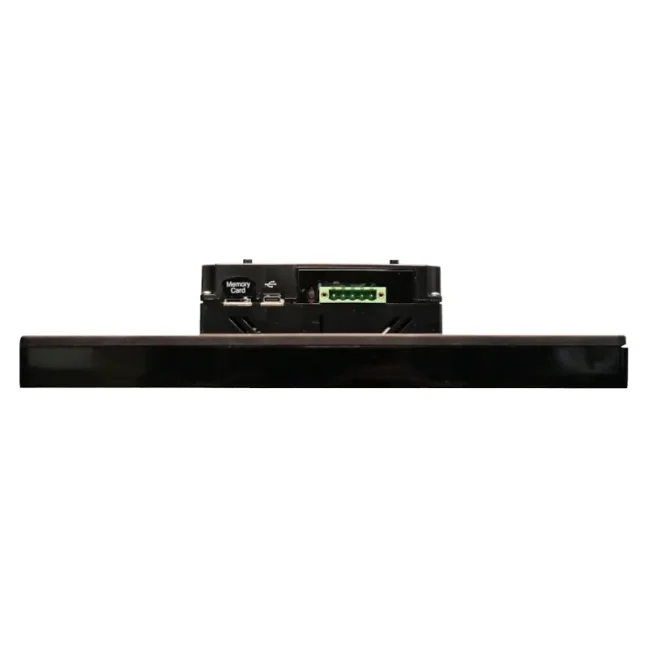

Removable memory: microSD card (up to 32 GB, for storing and loading applications, capturing screen images, and logging data for later retrieval)
AutoTune PID Capable: yes, the PLC can automatically set optimal PID parameters
Local Comment Storage: yes, comments can be saved directly in the PLC program
Floating point support: yes
Display and User Interface
Display type: 15" touchscreen TFT, 16 million colors, 500 nits
Resolution: 1024 x 768 px
Touch Screen: Resistive with Laminated Cover
Character Height: selectable fonts
Number of programmable screens: up to 1023
Number of objects per screen: up to 1023
Buttons: 8 virtual on-screen buttons (7 of them functionally programmable)
Inputs / Outputs
Number of built-in inputs / outputs: depending on selected model: 22–42, or a version without I/O
External I/O support: via CsCAN and Ethernet ports (e.g. Horner SmartStix, SmartRail, SmartBlock)
Max. number of digital inputs / outputs (built-in and external together): 2048 / 2048
Max. number of analog inputs / outputs (built-in and external together): 512 / 512
General Purpose Registers (words): 50000
General Purpose Internal Coils (bits): 32768 (16384 retentive)
Max. CAN cable length: up to 500 m per segment, maximum 4 segments
CAN port (independently galvanically isolated) enables: connection of remote I/O, communication between two or more PLCs / panels without a master control system, and programming in Cscape
Dimensions
Height: 231 mm (9,08″)
Width: 304 mm (11,94″)
Depth: 62 mm (2,43″)
Expansion module depth: additional serial communication module increases unit depth by 27,40 mm (1,08″)
Operating Conditions and Standards
Operating temperature: -10 to +60 °C (-40 °C Low Temp Option, Contact us)
Relative humidity (non-condensing): 5 to 95%
Product certifications and approvals: CE (compliance with European standards)
Enclosure / environmental protection rating: UL Type 1, 3R, 4, 4x, 12, 12k, 13
Licensed Features
Available with license purchase:
WebMI beyond the basic free version (1 user, 1 page, 5 data points)
