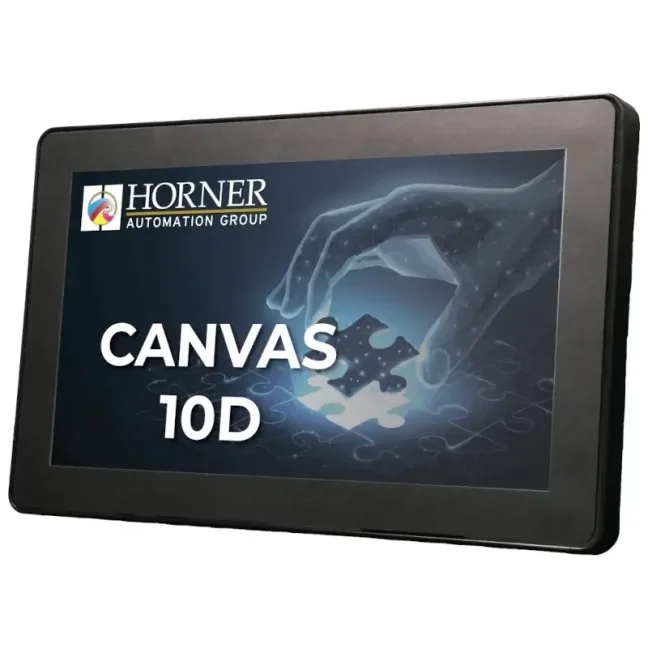

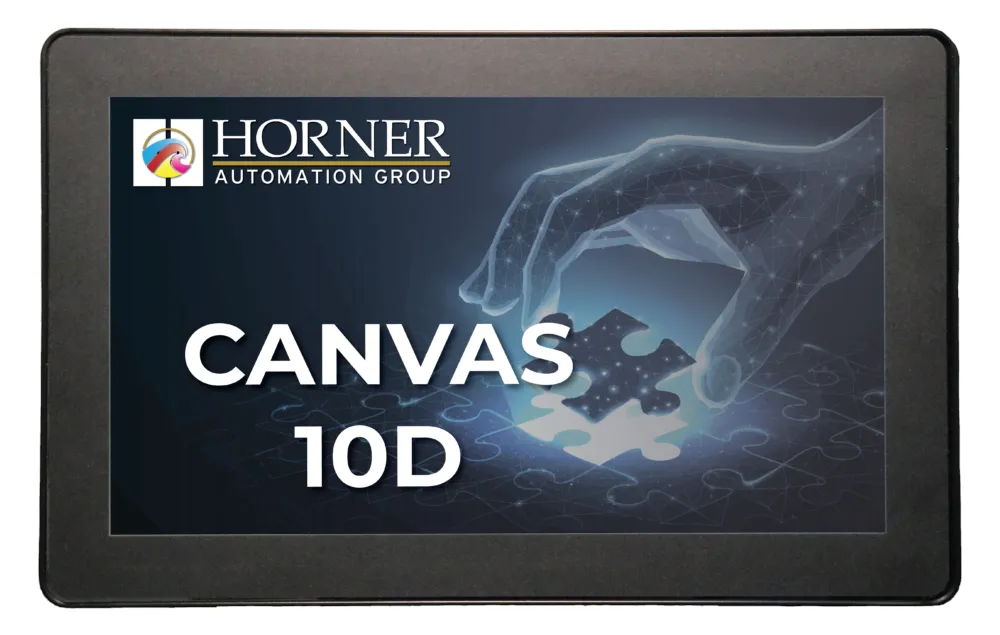

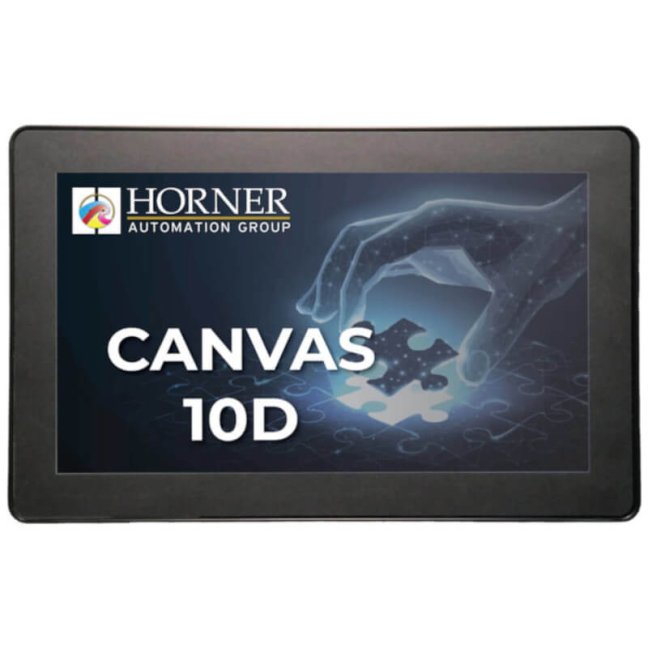

CANVAS 10D is a powerful industrial panel with a 10.1" colour touchscreen. It combines a logic control system (HORNER PLC) and a touchscreen operator interface (HMI) in a single device. Depending on the model, the number and type of analog and digital inputs and outputs can be selected. If the built-in I/Os are not sufficient for a specific application, they can be expanded via 2x Ethernet, 2x CAN or 3x serial interfaces.
All HORNER Canvas panels offer improved and more powerful graphics, providing a modern look for process visualization and making them suitable for demanding applications. They allow data transmission to the cloud using MQTT. In addition, they are ready for deployment with the upcoming Horner OCS360 Cloud service.
HORNER Canvas 10D is suitable for industrial applications that require reliability, communication flexibility, a larger colour touchscreen, and a wide range of built-in I/Os in a single device.
Key features:
10.1" WSVGA colour touchscreen (1024 x 600 px) with virtual control buttons
6 models according to I/O combination:
HE-CV-101D-00: no built-in I/O
HE-CV-101D-02: 12x DI (4x HSC), 6x DO relay, 4x AI (12 bit)
HE-CV-101D-03: 12x DI (4x HSC), 12x DO (2x PWM), 2x AI (12 bit)
HE-CV-101D-04: 24x DI (4x HSC), 16x DO (2x PWM), 2x AI (12 bit)
HE-CV-101D-05: 12x DI (4x HSC), 12x DO (2x PWM), 2x AI (14/16 bit), 2x AO (12 bit)
HE-CV-101D-06: 12x DI (4x HSC), 12x DO (2x PWM), 6x AI (17 bit), 4x AO (12 bit)

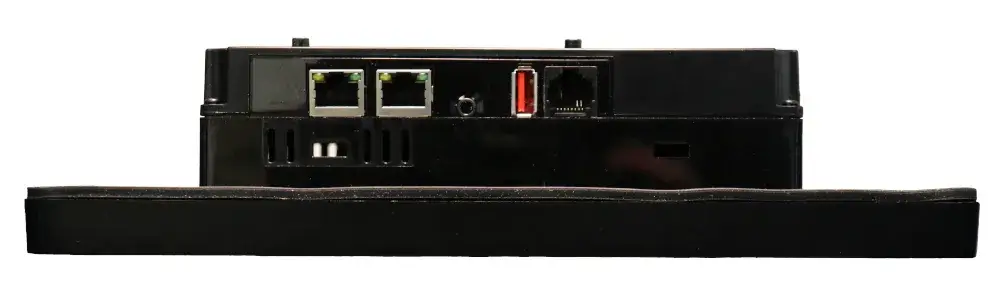

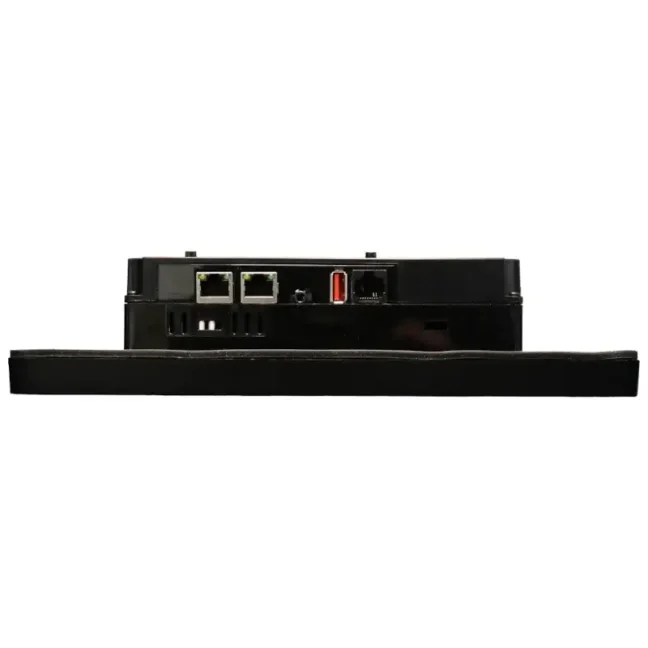

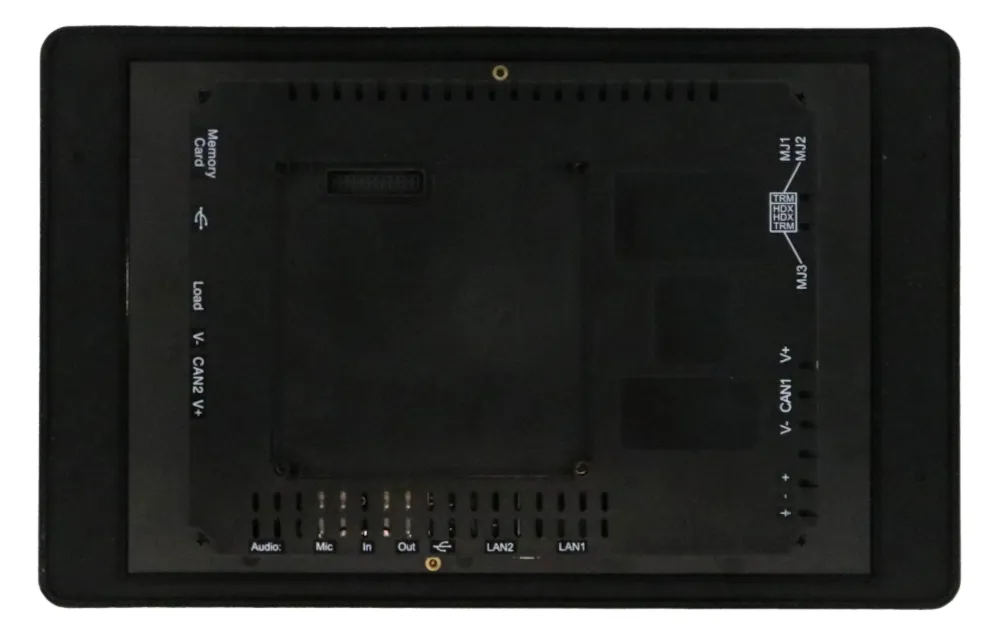

2x Ethernet ports

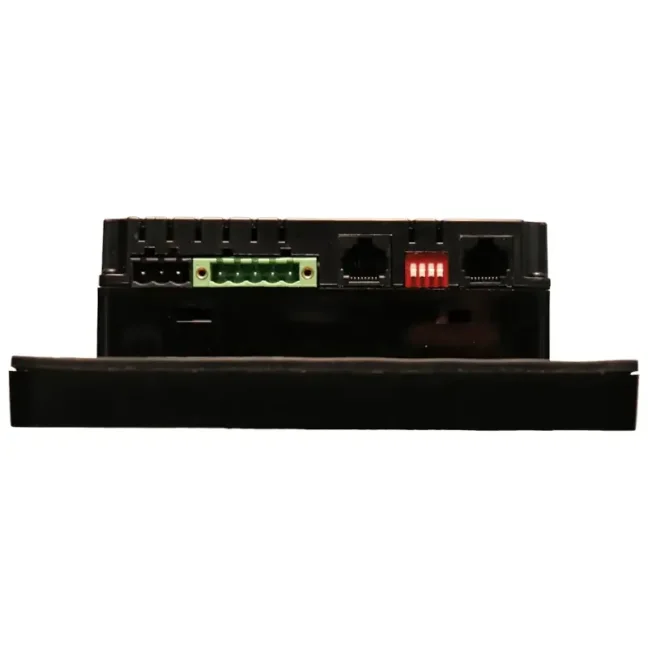

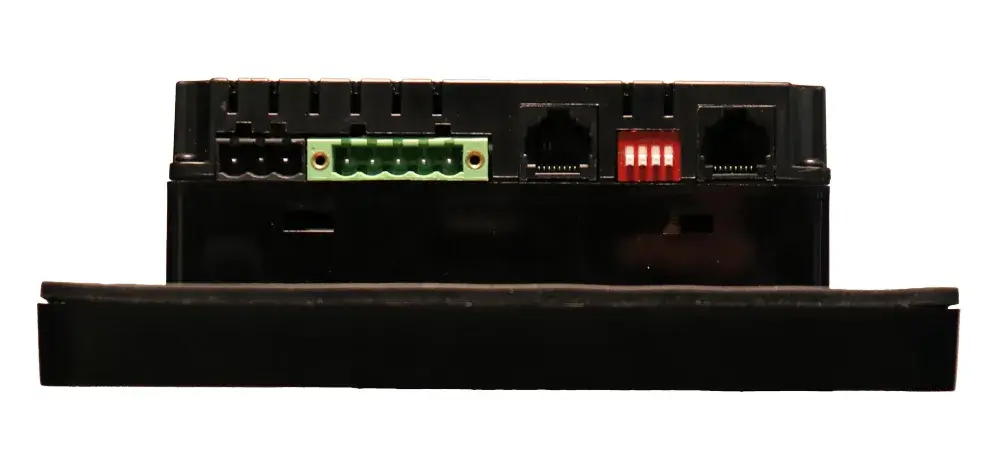

3x serial ports: 1x RS232/485 (MJ3 switchable between RS232 or RS485) and 1x RS232 + 1x RS485 (shared MJ1/2 connector with two simultaneously available RS232 and RS485 ports)

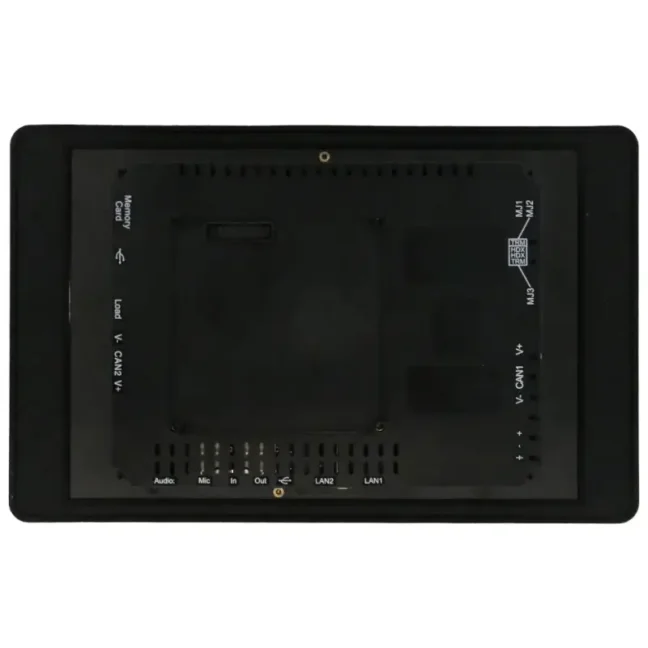

2x CAN ports
1x USB A (2.0), 1x USB C (2.0)
1x audio output
Power supply 10–30 VDC, panel mounting (cutout 131.9 x 175 mm) or DIN rail mounting, operating temperature from -10 to 60 °C
Programming in Cscape (IEC 61131-3), support for Ladder diagram, online program editing during runtime
Dual-layer microprocessor (SOM) with separate cores for logic and graphics
No license purchases needed – everything is included by default: WebMI+, CANopen, BACnet IP, MQTT Spark Plug, J1939, Enhanced IEC
Why choose CANVAS 10D:
All-in-one: PLC + HMI + I/O + communication interfaces
Easy deployment: programming and visualization in free and intuitive software (Cscape)
Low system cost: no need to purchase a separate HMI, external I/Os, or additional licenses
Large screen: more space for control elements and clearer process display
Modern visualization: CANVAS series uses next-generation graphics in Cscape 10, offering smoother screen rendering, sharper elements, and advanced graphic objects
Speed: thanks to parallel processing of logic and graphics, the system responds instantly to touch input while maintaining stable scan times
IIoT support: enables direct connection to IIoT networks via MQTT and WebMI+ without external devices or licenses
IT layer integration: real-time communication with cloud, SCADA, or databases via MQTT protocol
Remote access: via web interface (WebMI+) enables monitoring and control of the application from mobile, tablet, or PC
File transfer via FTP: easy upload and download of data (e.g. CSV or programs) between PLC and PC
Email alerts: automatic sending of alarms, status messages, or data directly to email (configuration on Cscape is needed)
Audio feedback: by adding a speaker, sounds can be played based on events in the application (e.g. warnings or faults)
Control Unit (PLC)
Program memory: 2 MB (NVRAM, supports online programming)
Number of cores: 2
Scan time: 0.02 ms/kB

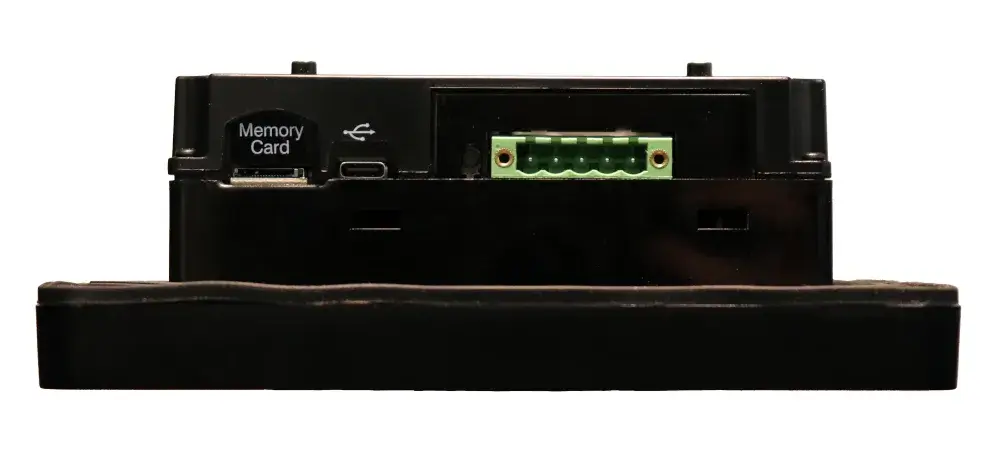

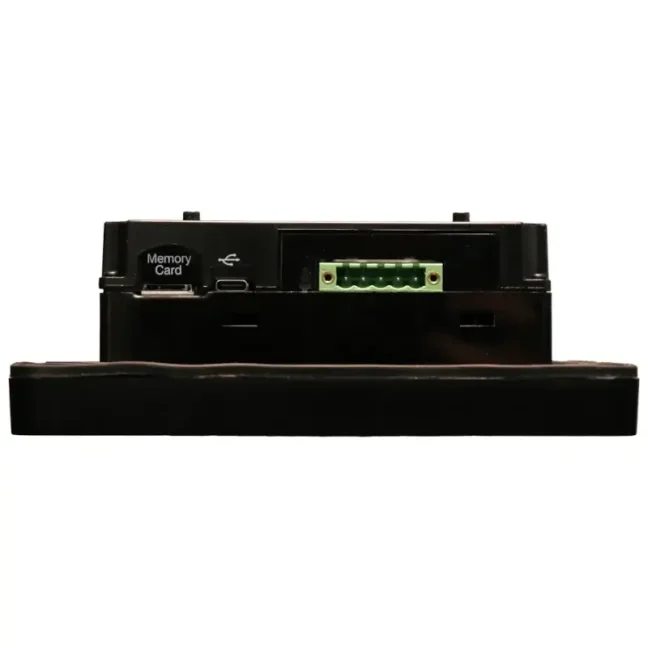

Removable memory: microSD card (up to 32 GB, for storing and loading applications, capturing screen images, and logging data for later retrieval)
AutoTune PID Capable: yes, the PLC can automatically set optimal PID parameters
Local Comment Storage: yes, comments can be saved directly in the PLC program
Max. CAN cable length: up to 500 m per segment, maximum 4 segments
Programming via CAN: only using CsCAN
Dimensions
Height: 167.8 mm (6.61″)
Width: 265.2 mm (10.44″)
Depth: 64.3 mm (2.53″)
Expansion module depth: additional serial communication module increases unit depth by 13 mm (0.5″)
Weight (without I/O module): 1225 g
Operating Conditions and Standards
Operating temperature: -10 to +60 °C
Storage temperature: -20 to +60 °C
Relative humidity (non-condensing): 5 to 95%
Product certifications and approvals: CE (compliance with European standards), UL Class I Div II (suitable for hazardous environments – e.g. explosive gases)
Enclosure / environmental protection rating: UL Type 1, 3R, 4, 4x, 12, 12k, 13
Los PLC HORNER combinan el control de la máquina, la pantalla de operación y las entradas/salidas en un solo dispositivo. Si necesita una solución compacta para una máquina más pequeña, una parte de una línea, un puesto de prueba o la modernización de una tecnología antigua, no tiene que buscar y combinar por separado un PLC, un panel HMI y módulos de E/S.
Los vídeos formativos del fabricante muestran cómo conectar el panel, trabajar en Cscape, configurar la comunicación, utilizar WebMI y realizar el trabajo básico con entradas y salidas. Son especialmente útiles durante la primera puesta en marcha, para que no tenga que descubrirlo todo por el método de prueba y error.
