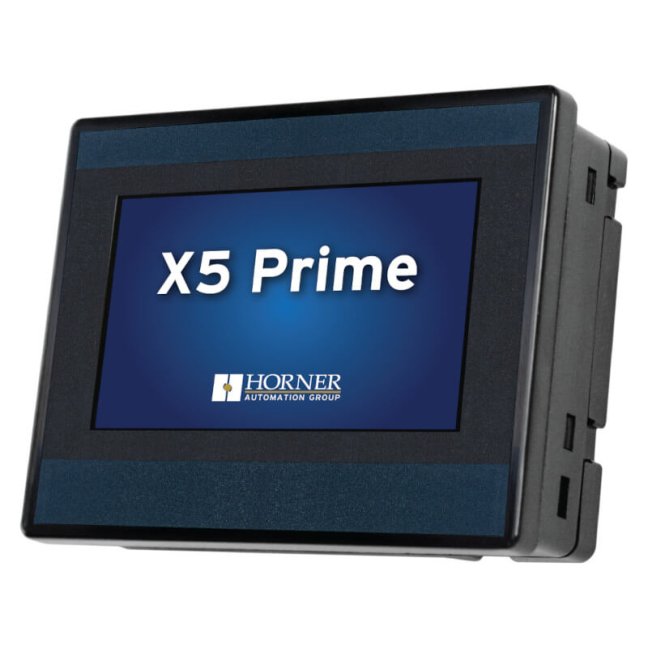

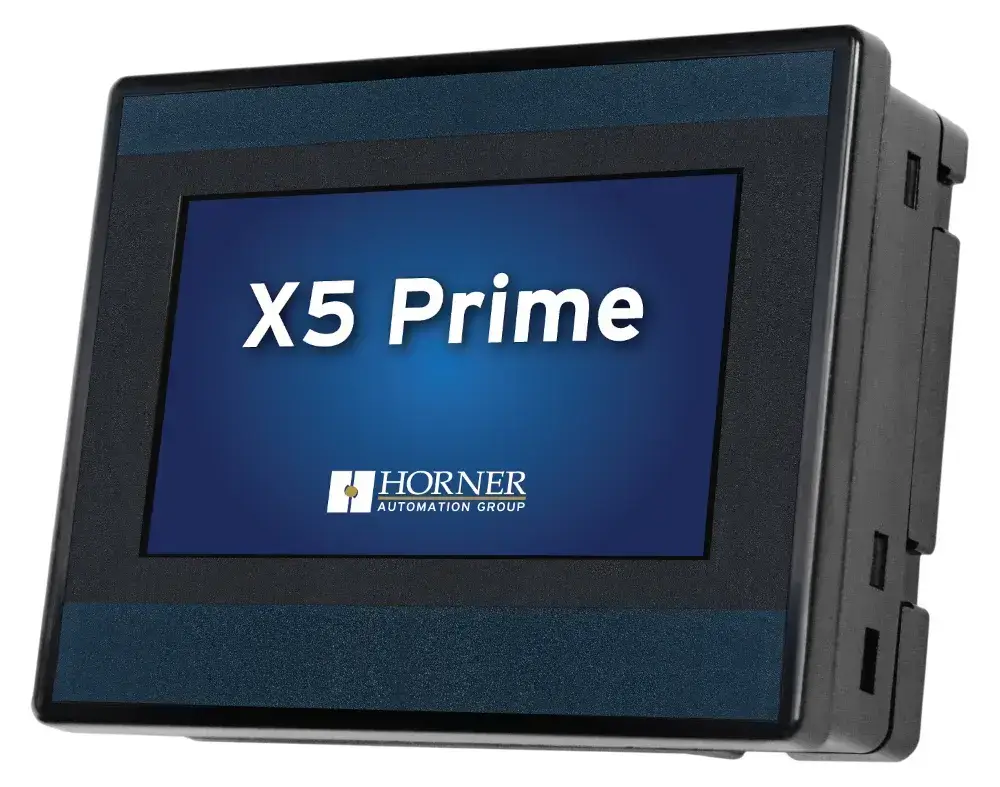

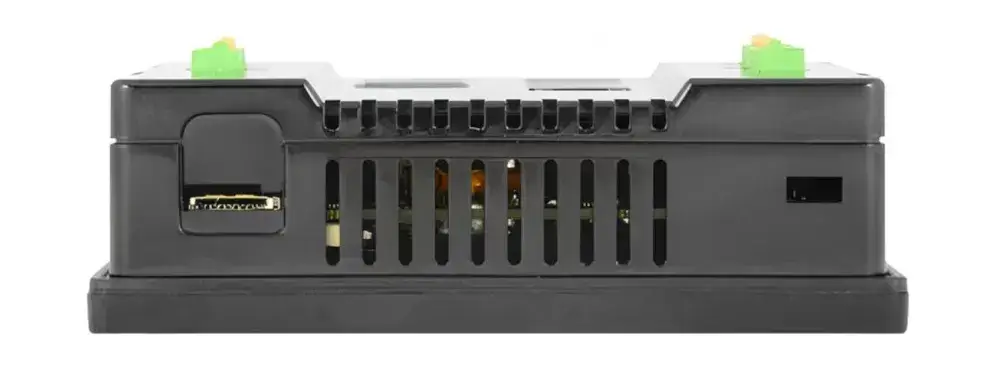

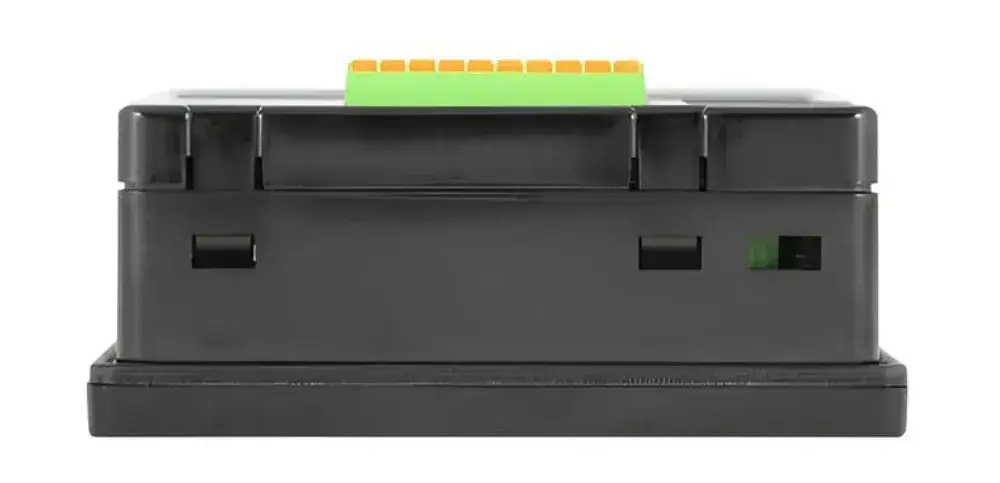

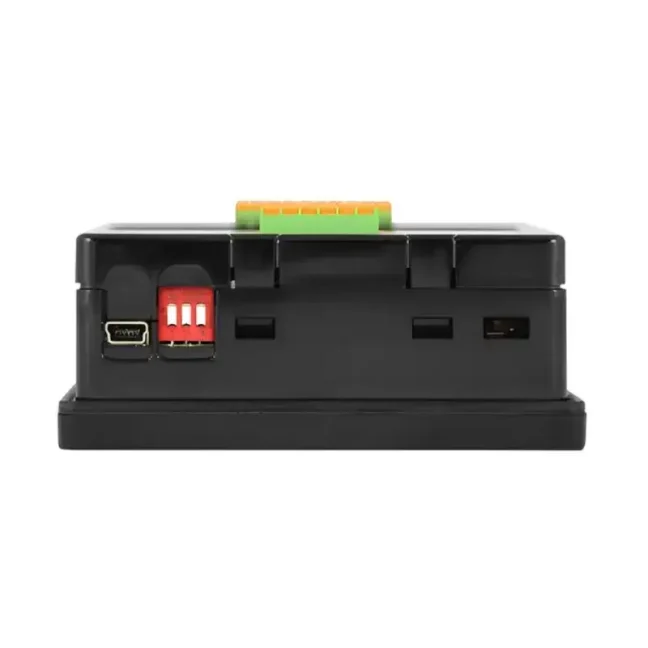

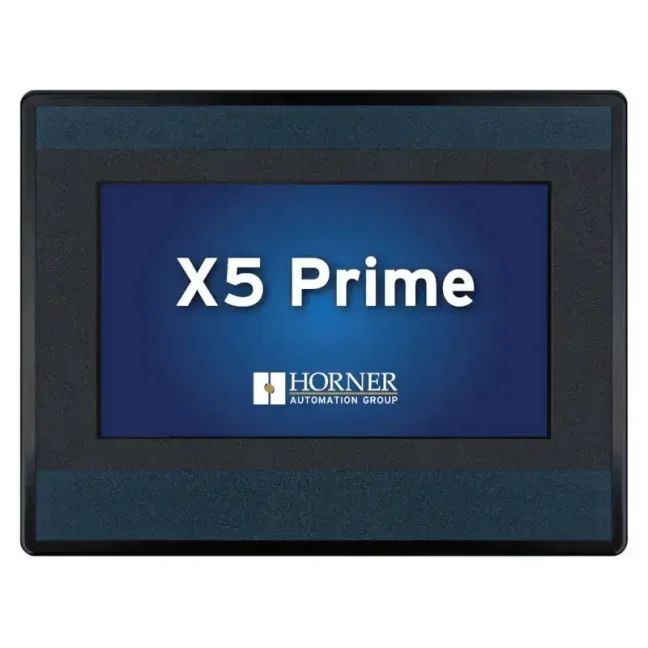

Horner X5 Prime is an industrial panel with a 4,3" color touchscreen that enables machine control and data visualization. It combines a logic controller (HORNER PLC) and operator touchscreen interface (HMI) in a single device. Depending on the model, you can choose the number and type of analog or digital inputs and outputs. If the built-in I/Os are not sufficient, they can be expanded via 1x Ethernet, 1x CAN or 2x serial interfaces.
It is ideal for production lines and machines with fast cycles and complex logic. Thanks to its powerful processor, it handles demanding tasks reliably and quickly. Engineers and integrators will appreciate its robust design and flexibility, which save time during both installation and operation.
Key Features:
4,3" TFT colour touchscreen (480 x 272 px) with virtual control buttons

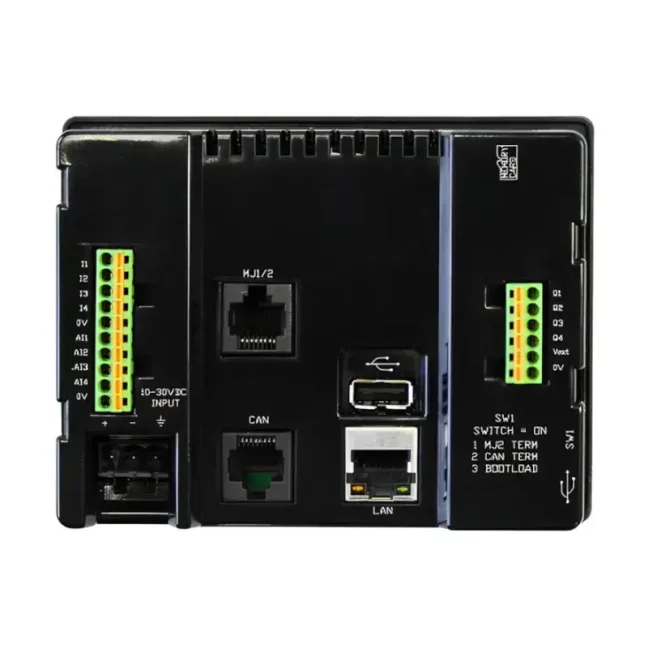

4x DI (4x HSC), 4x DO (2x PWM), 4x AI (12 bit)
1x Ethernet port
2x serial ports: 1x RS232 + 1x RS485 (shared MJ1/2 connector with two simultaneously available ports RS232 and RS485)
1x CAN port

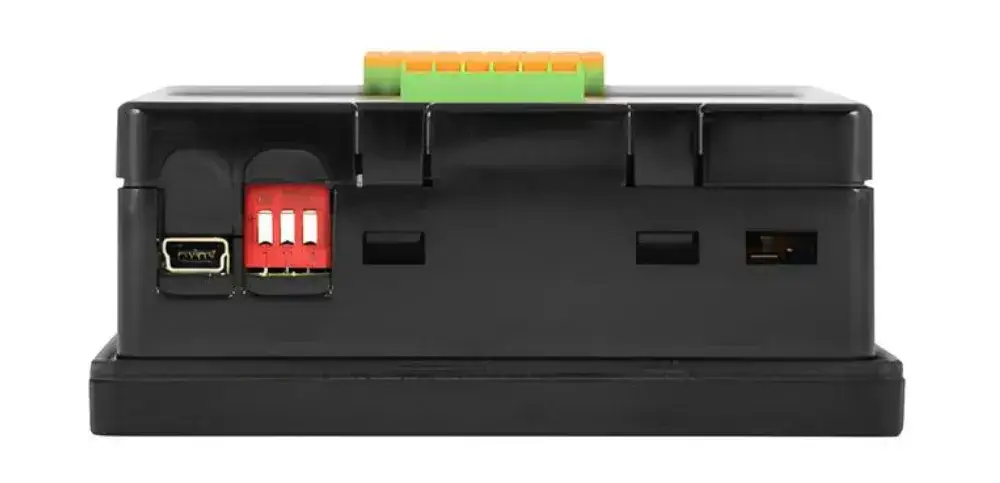

1x USB A (2.0), 1x USB Mini-B (2.0)
Power supply: 10–30 VDC, panel mounting, operating temperature -10 to 60 °C
Programming in Cscape (IEC 61131-3), support for Ladder Diagram, online editing while running
Proprietary System-on-Module (SOM) with ARM processor and 2 MB application memory, logic scan rate up to 0.02 ms/kB
Why choose X5 Prime?
All-in-one: PLC + HMI + I/O + communication interfaces
High performance for demanding applications: handles complex logic and fast machine cycles
Easy deployment: programming and visualization in free, intuitive Cscape software
Fast integration: ideal for machines, smaller production lines or retrofits
Extensive communication capabilities: connectivity with SCADA systems, OPC servers, and peripheral devices via Ethernet, CAN bus, and serial interfaces
System scalability: compatible with other Horner XL Prime models, easy integration into larger automation systems
Compact design: saves space in control cabinets while offering a powerful processor and intuitive touchscreen control
Remote access: via WebMI interface for monitoring and control from mobile, tablet or PC
File transfer via FTP: easy uploading and downloading of data (e.g. CSV or programs) between PLC and PC
Email alerts: automatic sending of alarms, status reports or data directly to email (requires configuration in Cscape)
Robust design: resistant to temperature, humidity, and vibration
The X5 Prime panel is part of the so-called "XL Prime OCS Series", in which Horner offers compact panels XL4 Prime, X5 Prime, XL6 Prime, XLW Prime, XL7 Prime, XL10 Prime a XL15 Prime. All of them feature an integrated PLC, HMI, I/O, and communication interfaces. These panels differ in display size, number and type of inputs/outputs and expansion capabilities.
Control Unit (PLC)
Program memory: 2 MB (NVRAM, supports online programming)
Scan time: 0.02 ms/kB

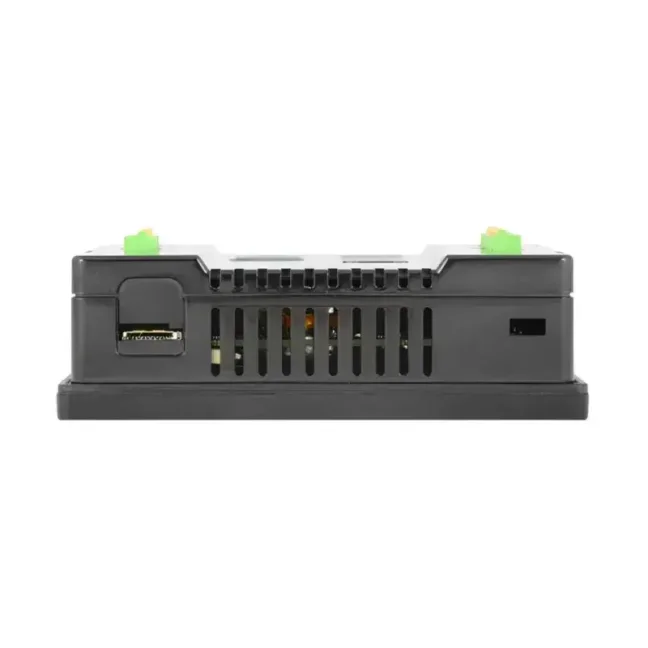

Removable memory: microSD card (up to 32 GB, for storing and loading applications, capturing screen images, and logging data for later retrieval)
AutoTune PID Capable: yes, the PLC can automatically set optimal PID parameters
Local Comment Storage: yes, comments can be saved directly in the PLC program
Floating point support: yes
Display and User Interface
Display type: 4,3" touchscreen TFT, 65k colours
Resolution: 480 x 272 px
Character Height: selectable fonts
Number of programmable screens: up to 1023
Number of objects per screen: up to 1023
Buttons: 5 virtual on-screen buttons (4 of them functionally programmable)
OEM front panel: design can be customized upon request (logo, colour, labeling)
Inputs / Outputs
Number of built-in inputs / outputs: 12
External I/O support: via CsCAN and Ethernet ports (e.g. Horner SmartStix, SmartRail, SmartBlock)
Max. number of digital inputs / outputs (built-in and external together): 2048 / 2048
Max. number of analog inputs / outputs (built-in and external together): 512 / 512
General Purpose Registers (words): 50000
General Purpose Internal Coils (bits): 32768 (16384 retentive)
Max. CAN cable length: up to 500 m per segment, maximum 4 segments
Programming over CAN: Yes
Dimensions
Height: 96,27 mm (3,79″)
Width: 124,97 mm (4,92″)
Depth: 35,8 mm (1,4″)
Operating Conditions and Standards
Operating temperature: -10 to +60 °C
Relative humidity (non-condensing): 5 to 95%
Product certifications and approvals: CE (compliance with European standards), UL Class I Div II (suitable for hazardous environments – e.g. explosive gases)
Enclosure / environmental protection rating: IP66, UL Type 3R, 4, 4x, 12, 12k, 13
Licensed Features
Available with license purchase:
WebMI beyond the basic free version (1 user, 1 page, 5 data points)
Los PLC HORNER combinan el control de la máquina, la pantalla de operación y las entradas/salidas en un solo dispositivo. Si necesita una solución compacta para una máquina más pequeña, una parte de una línea, un puesto de prueba o la modernización de una tecnología antigua, no tiene que buscar y combinar por separado un PLC, un panel HMI y módulos de E/S.
Los vídeos formativos del fabricante muestran cómo conectar el panel, trabajar en Cscape, configurar la comunicación, utilizar WebMI y realizar el trabajo básico con entradas y salidas. Son especialmente útiles durante la primera puesta en marcha, para que no tenga que descubrirlo todo por el método de prueba y error.
