PLC with 7" touchscreen, 2 variants with up to 30 I/O, 256 kB logic memory, 1x RJ45, 1x USB Mini-B, 1x RS232 + 1x RS485, 1x CAN, microSD slot, 24 VDC, optional support of CANopen and BACnet/IP Más
Después de completar el formulario, te enviaremos un enlace para descargar el archivo.
PLC with 7" touchscreen, 2 variants with up to 30 I/O, 256 kB logic memory, 1x RJ45, 1x USB Mini-B, 1x RS232 + 1x RS485, 1x CAN, microSD slot, 24 VDC, optional support of CANopen and BACnet/IP Más
Código del producto: HE-X7A
1
Opciones
2
0
1
Versión
Código
Disponibilidad
Precio sin IVA
12x DI (24 VDC, 4x HSC, 500 kHz), 12x DO (24 VDC, 2x PWM, 65 kHz), 4x AI (0-20 mA, 4-20 mA, PT100 RTD, 12 bit), 2x AO (4-20 mA, 12 bit)

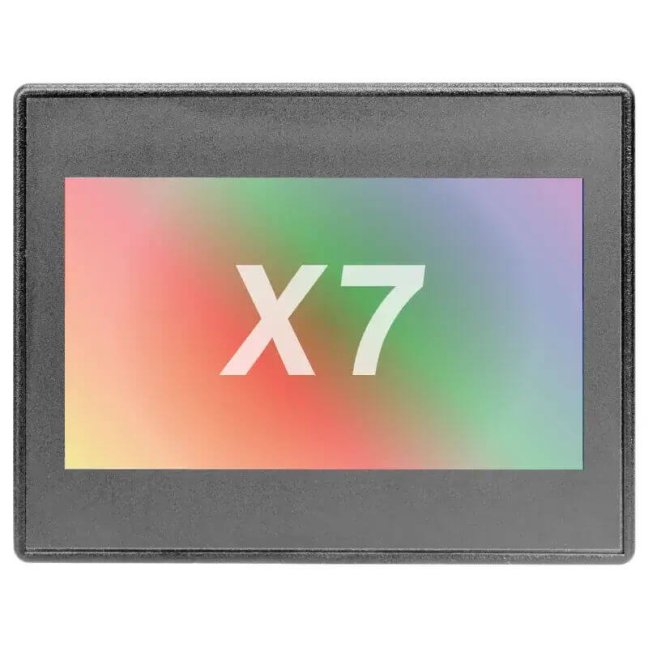

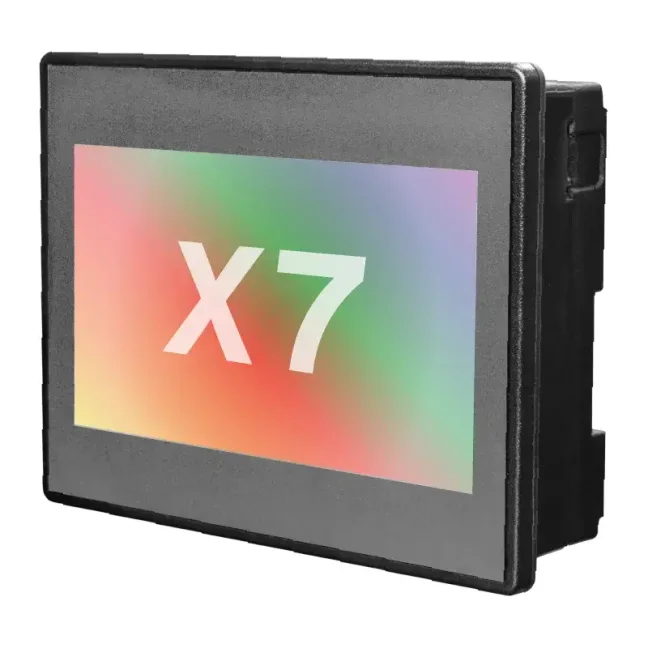

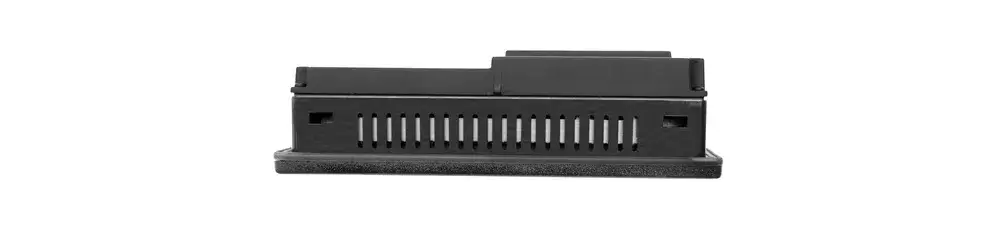

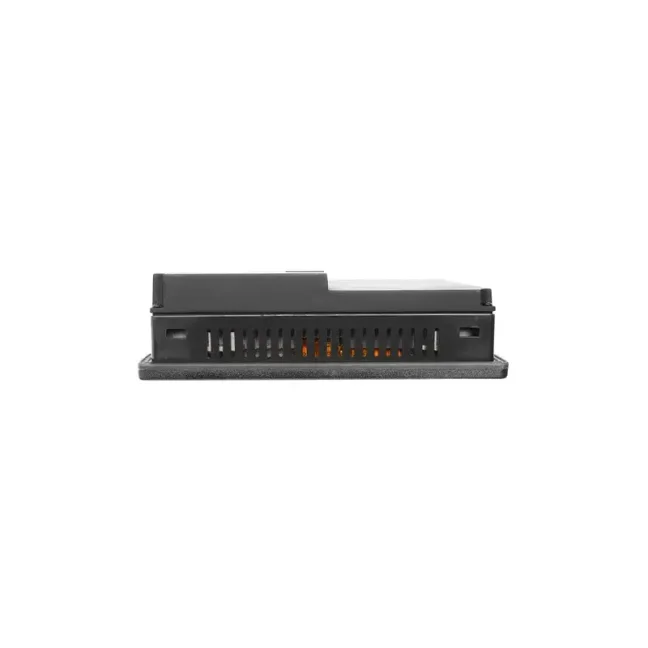

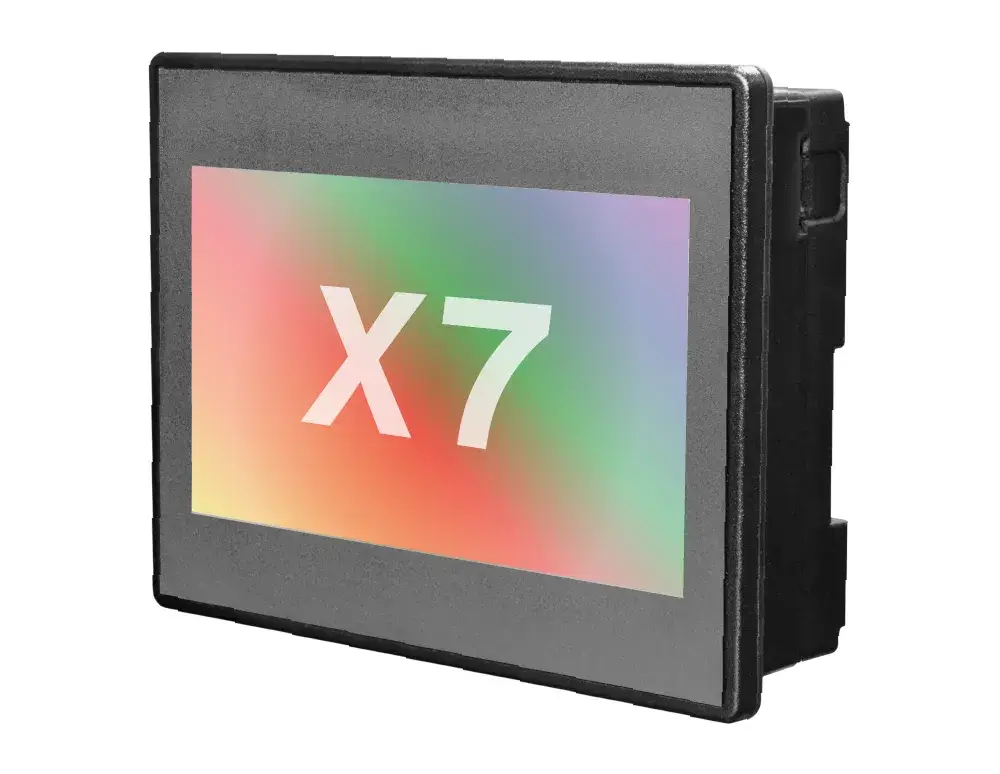

HORNER X7 is an industrial panel with a 7" colour touchscreen. It combines a logic control system (HORNER PLC) and a touchscreen operator interface (HMI) in a single device. Depending on the model, the number and type of analog and digital inputs and outputs can be selected. If the built-in I/Os are not sufficient for a specific application, they can be expanded via Ethernet, CAN or serial interfaces.
HORNER X7 is suitable for industrial applications that require clear visualization, reliable process control, and extensive communication capabilities with other devices. Thanks to its 7"touchscreen, integrated I/O, and expandability, it offers a compact „all-in-one“ solution for efficient automation.
Key features:
7" colour touchscreen (800 x 480 px) with virtual control buttons
2 models according to I/O combination:
HE-X7A: 12x DI (24 VDC, 4x HSC, 500 kHz), 12x DO (24 VDC, 2x PWM, 65 kHz), 4x AI (0-20 mA, 4-20 mA, PT100 RTD, 12 bit), 2x AO (4-20 mA, 12 bit)
HE-X7R: 12x DI (24 VDC, 4x HSC, 500 kHz), 2x DO (24 VDC, 2x PWM, 65 kHz), 6x DO relay (3 A), 4x AI (0-20 mA, 4-20 mA, PT100 RTD, 12 bit), 2x AO (4-20 mA, 12 bit)

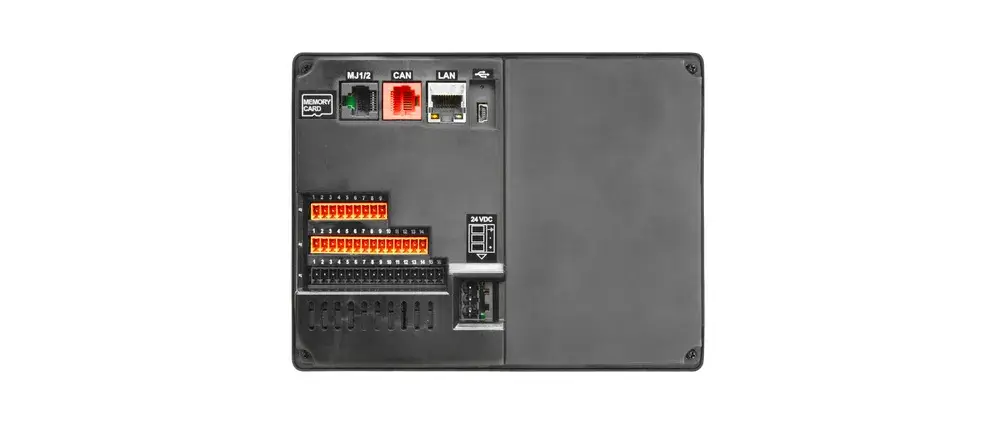

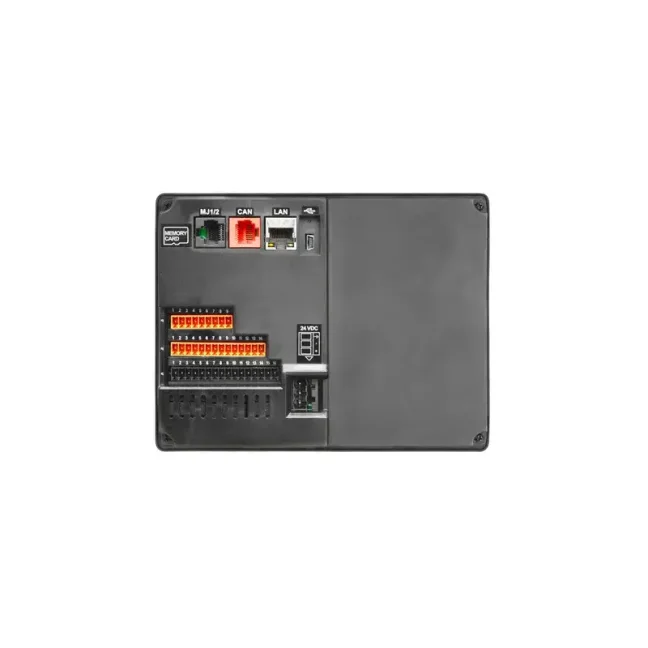

1x Ethernet port
2x serial ports: 1x RS232 + 1x RS485 (shared MJ1/2 connector with two simultaneously available RS232 and RS485 ports)
1x CAN port (via RJ45)
1x USB Mini-B
Power supply 24 VDC ± 20 %, panel mounting (cutout 175 x 131,2 mm) or DIN rail mounting, operating temperature from -10 to 60 °C
Programming in Cscape (IEC 61131-3), support for Ladder diagram, online program editing during runtime, Enhanced IEC standard is not supported
Why choose X7:
All-in-one: PLC + HMI + I/O + communication interfaces
Easy deployment: programming and visualization in free and intuitive software (Cscape)
Low system cost: no need to purchase a separate HMI, external I/Os, or additional licenses (Exception: CANopen, BACnet/IP and extended WebMI licenses sold separately)
Fast integration: ideal for machines, small production lines, or retrofit applications
Extensive communication capabilities: connectivity with SCADA systems, OPC servers, and peripheral devices via Ethernet, CAN bus, and serial interfaces
System scalability: compatible with other Horner Micro models, seamless integration into larger automation systems
Compact design: space-saving in control cabinets while providing a powerful processor and intuitive touch interface
Remote access: via web interface (WebMI) enables monitoring and control of the application from mobile, tablet, or PC
File transfer via FTP: easy upload and download of data (e.g. CSV or programs) between PLC and PC
Email alerts: automatic sending of alarms, status messages, or data directly to email (configuration in Cscape is needed)
The X7 panel is part of the so-called "Micro OCS Series", in which Horner offers compact panels X2, X4, X5, X7 and X10. All of them feature an integrated PLC, HMI, I/O, and communication interfaces. These panels differ in display size, number and type of inputs/outputs, and expansion capabilities.
Control Unit (PLC)
Program memory: 256 kB (supports online programming)
Scan time: 0.4 ms/kB

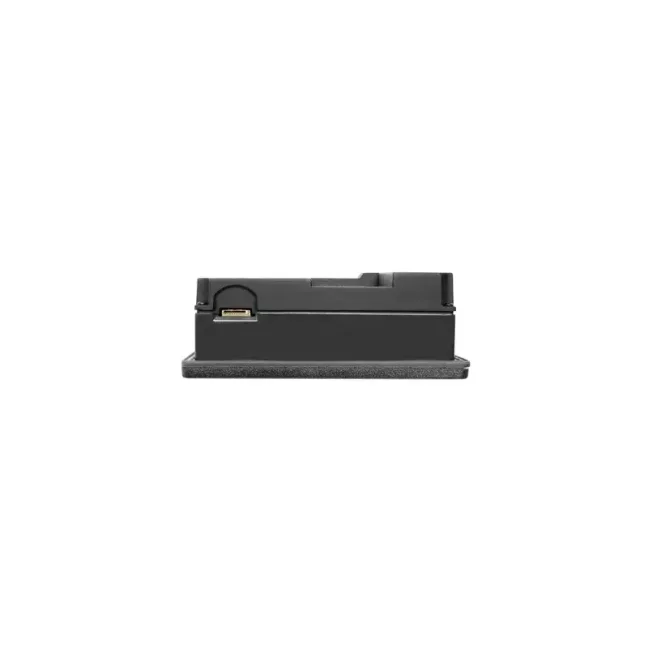

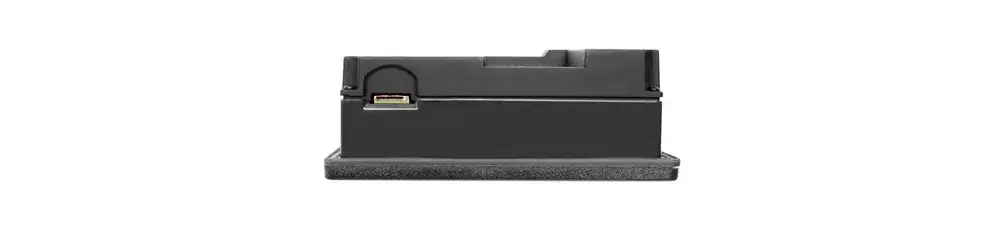

Removable memory: microSD card (up to 32 GB, for storing and loading applications, capturing screen images, and logging data for later retrieval)
AutoTune PID Capable: yes, the PLC can automatically set optimal PID parameters
Local Comment Storage: yes, comments can be saved directly in the PLC program
USB Mini-B: 1x (e.g. for PLC programming, visualization setup, or data access)
CAN Communication
Number of ports: 1x
Supported protocols: CsCAN
Max. CAN cable length: up to 500 m per segment, maximum 4 segments
CAN port (independently galvanically isolated) enables: connection of remote I/O, communication between two or more PLCs / panels without a master control system, and programming in Cscape
Dimensions
Height: 143,5 mm (5,65″)
Width: 186,08 mm (7,33″)
Depth: 46,6 mm (1,34″)
Weight: 590 g
Operating Conditions and Standards
Operating temperature: -10 to +60 °C
Storage temperature: -20 to +70 °C
Relative humidity (non-condensing): 5 to 95%
Product certifications and approvals: CE (compliance with European standards), UL (certification to US safety standards)
Enclosure / environmental protection rating: IP66
Expandable with Licensed Features
CANopen
BACnet IP
WebMI beyond the basic free version (1 user, 1 page, 5 data points)
