17" industrial PC panel NODKA TPC6000-A173-T - NODKA: Configurador en línea (precio desde)

17" industrial PC panel NODKA TPC6000-A173-T - NODKA: Configurador en línea (precio desde)

Gran valor FOXON PLUS
Warranty 2 years (option up to 4 years)
NODKA

17" resistive touch screen, 1280x1024, Intel® Celeron® J6412, max 16GB RAM, 1x mSATA SSD, 1x SATA 2,5" SSD, 2x GLAN, 4x USB 3.0, 2x Serial, DVI-D, 12-24VDC Más

Código del producto: TPC6000-A173-T-J6412

El producto ya no está disponible

Producto de sustitución

Rezervace termínu

Solicitar presupuesto
NODKA

17" resistive touch screen, 1280x1024, Intel® Celeron® J6412, max 16GB RAM, 1x mSATA SSD, 1x SATA 2,5" SSD, 2x GLAN, 4x USB 3.0, 2x Serial, DVI-D, 12-24VDC Más

Código del producto: TPC6000-A173-T-J6412

El producto ya no está disponible

Main features

  • NODKA - výrobce průmyslových počítačů, PC panelů a monitorů17" XGA TFT
  • Resolution 1280x1024, Precision Resistive touch screen
  • Fanless Panel PC based on Intel® Celeron® J6412 processor
  • 1x DDR4 2400MHz, max 16GB RAM
  • 1x mSATA SSD, 1x SATA 2,5" SSD
  • Aluminum-magnesium alloy die-casting, cover with PET film, IP65 degree of protection
  • 2x RTL8111F 10/100/1000Mbps RJ45 port
  • 3x USB 2.0 and 1x USB 3.0
  • 2x RS232 / RS485
  • Wide voltage power supply: DC12~24V.Support reverse polarity protection, overvoltage protection, overcurrent protection
  • Extend WIFI/3G/4G network/1 x Mini-PCIe slot/1 x EasyBUS slot

Warranty

  • The basic warranty provided is 2 years
  • Extended warranty +1 year for +10% of the price
  • Extended warranty +2 year for +20% of the price

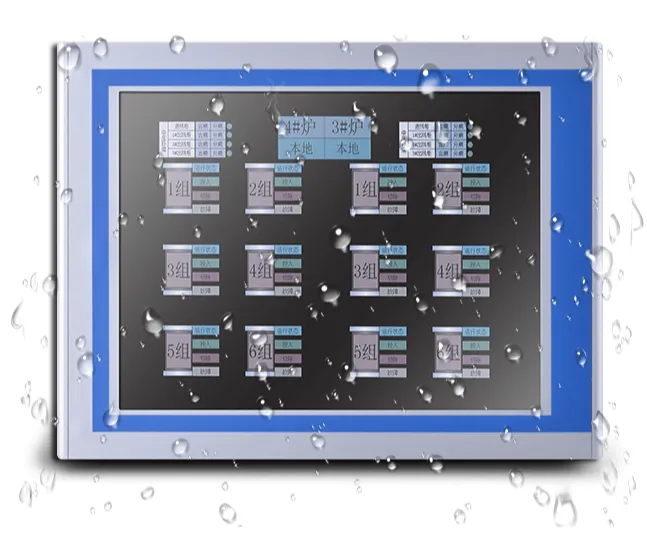

Rugged IP65 and NEMA4 Aluminium Chassis, Fanless design

The front of the panel meets IP65/NEMA4 Standard and is water and dust resistant. The entire PC panel is sealed, fanless and without ventilation holes.

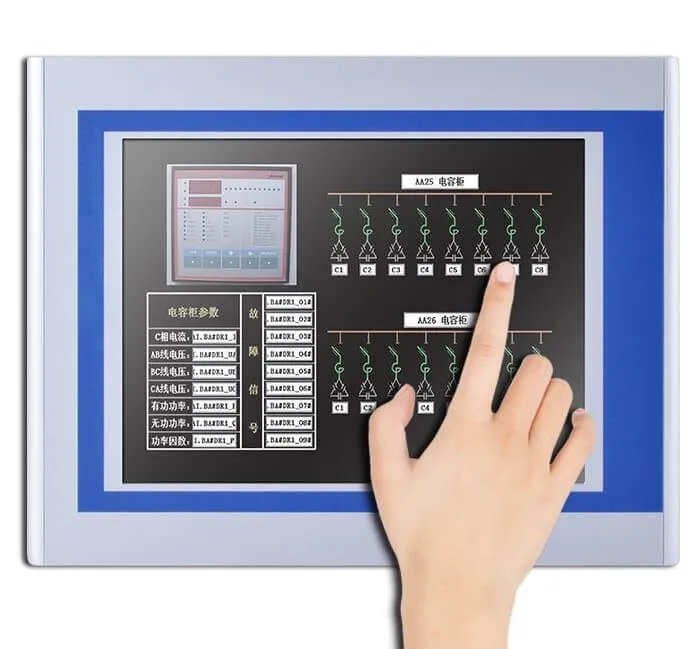

Rugged touch screen with resistive touch control

The monitor has a resistive touch, resistant to water, dust and oil. Touch screen lifetime is up to 50 million clicks. The front panel is neutral, with no logos or other lettering. NODKA offers to place your own logo on the monitor.

Top-quality details, strong power and low consumption

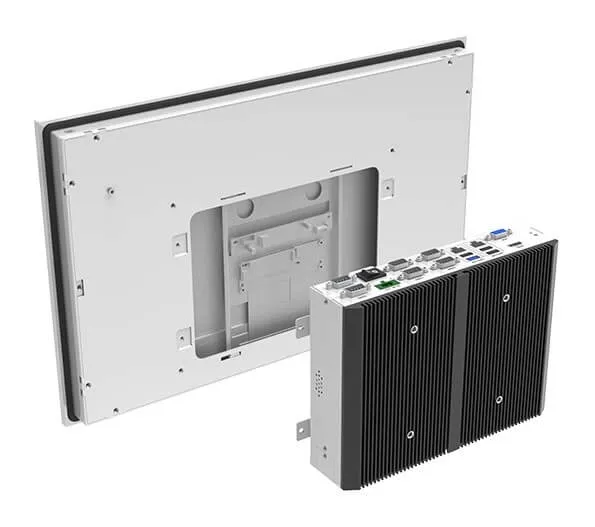

The PC panel is composed of a NODKA touchscreen monitor and a NODKA industrial computer, which has sufficient computing power and low power consumption. The whole device is very well processed and meets the highest quality requirements.

Processor

  • CPU：Intel® Celeron® J6412
  • Frequency：Quad core 2.0GHz
  • L3 Cache：2MB
  • Chipset：Integrated PCH-LP
  • Memory：1*DDR4 2400MHz，max16GB
  • Storage Medium：1×2.5" SATA bay + 1×mSATA

I/O Interface

  • LAN：2×Realtek 1000Mbps RJ-45 with surge protection,lightning protection design and 15KV ESD protection
  • USB：4 xUSB3.0/2.0/1.1
  • COM：2×RS232 / 485
  • Audio：Optional

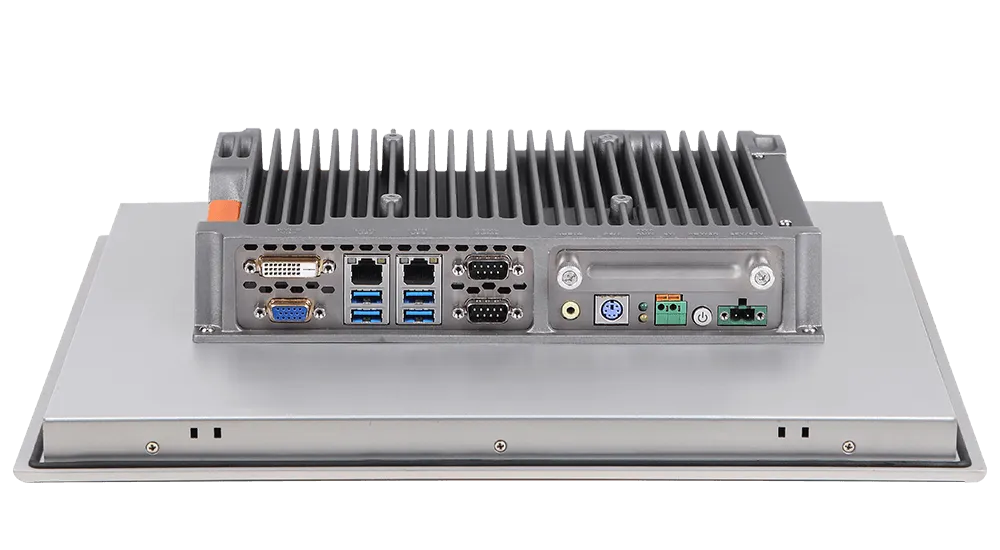

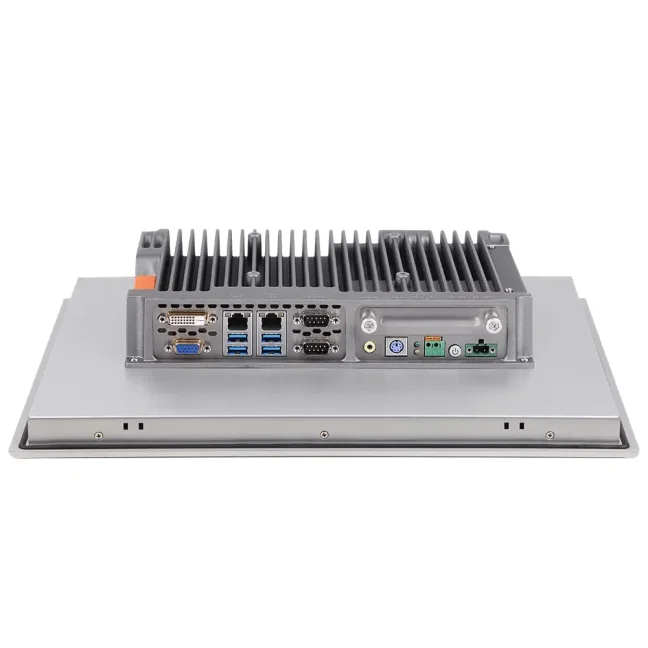

  • Rear I/O：DVI-I/ 2 x GLAN / 4 x USB / 2 x COM / 2 x PS2 / Line-out / Mic-in

Physical

  • Dimensions：434mm×342mm×73mm
  • Cut Out Size：411mm×325mm
  • Weight：6,35 kg

Operating System

  • OS：Windows 7, Windows 7 Embedded, Windows 8, Windows 10, Windows 11, Linux, VxWorks, QNX

Power

  • Input Voltage：12-24VDC ±10% , support reverse polarity protection,overvoltage protection,overcurrent protection
  • Power Dissipation：46Watt(Max.)

LCD

  • LCD Size：17" SXGA TFT
  • Resolution：1280×1024
  • Colors：16.7MB
  • Backlight：LED
  • MTBF：30000hrs
  • Pixel Pitch：0.240×0.240
  • Luminance：250cd/m²
  • Contrast Ratio：1000 : 1
  • Viewing Angle：(L) 80 / (R) 80 / (T) 80 / (B) 80

Touch Screen

  • Touchscreen Type：Resistive touch screen
  • Resolution：4096 x 4096
  • Transmittance：> 75%
  • Controller interface：USB
  • Driver Support：Windows 7, Windows8, Windows10, Linux
  • Response Time：< 5ms
  • Surface hardness：Mohs' Number 3H
  • Click life：250g / 35,000,000 times
  • Draw life：250g / 5,000,000 times

Environment

  • Work temperature：-20 ~ 60°C (-4~140°F)(Wide temperature SSD) / 0 ~ 45°C (32~113°F)(General temperature HDD/SSD)
  • Storage Temperature：-30 ~ 80°C (-22~176°F)
  • Relative Humidity：5 ~ 95% RH@40°C (Non-condensation)
  • Vibration：Operating Random Vibration Test 5~500Hz, 1.5Grms@with SSD, follow IEC 60068-2-64
  • Shock：Operating 20G peak acceleration (11ms duration), follow IEC 60068-2-27
  • EMC：CE/FCC Class B
  • Water-proof：Front panel IP65

Expansion Slot

  • MiniPCIe：1×Mini-PCIe slot, extensible 3G,WIFI wireless card
