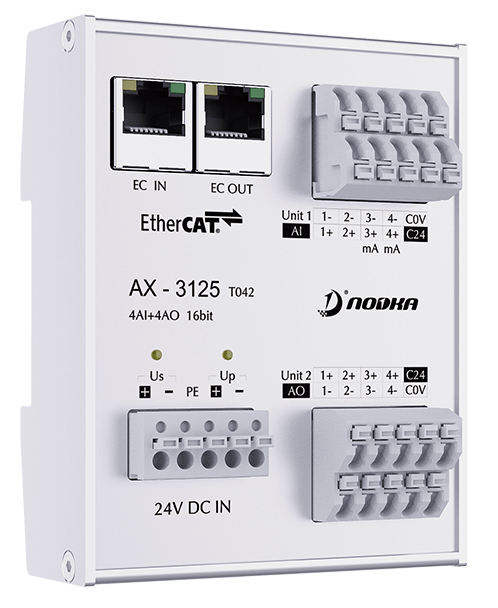

2xAI 0-10V / 2xAI 0-20mA / 4xAO 0-10V, EtherCAT IO module
IO module with EtherCAT communication interface, signal and power LEDs and separate power supply for module and signals. Flat design and aluminium rugged chassis with DIN rail mounting. More
Code: AX-3125-T042
0 EUR Exkl. MwSt. (0 EUR Inkl. MwSt.)
Recycling fee 0,04 EUR included in the price.
IO module with EtherCAT communication interface, signal and power LEDs and separate power supply for module and signals. Flat design and aluminium rugged chassis with DIN rail mounting. More
Code: AX-3125-T042
- 2-channel analog input, voltage, 0V..10V, 16 bit, single-ended
- 2-channel analog input, current, 0..20mA, 16 bit, single-ended
- 4-channel analog Output, voltage, 0V..10V, 16 bit, single-ended
- Rugged aluminum alloy housing
- High reliable spring terminal
- Independent power supply for signals and peripherals
- DIN-Rail mount
| Number of Inputs | 4(2voltage,2current) single-ended |
| Signal voltage | 0V..+10V |
| Signal voltage | 0mA..20mA |
| Resolution | 16bit |
| Internal resistance | ~10MΩ(Voltage),200Ω(Current) |
| Conversion time | ~200μs |
| Measure error | < 0.1% (at 0°C .. +55°C, relative to the full scale value) |
| Number of Outputs | 4x analog, single-ended |
| Signal voltage | 0V..+10V |
| Module current consumption | Typically 100mA |
| Electrical isolation | 500V(EtherCAT/field voltage) |
| Operating temperature range | -25°C .. +60°C |
| Storage temperature range | -40°C .. +85°C |
| Relative humidty | 95%, no condensation |
| Dimensions(W x H x D) | 105mm x 84mm x 45mm |
| Weight Approx | 300 g |
| Mounting | DIN-Rail |
| Approvals | CE |
| Degree of protection | IP30 |
