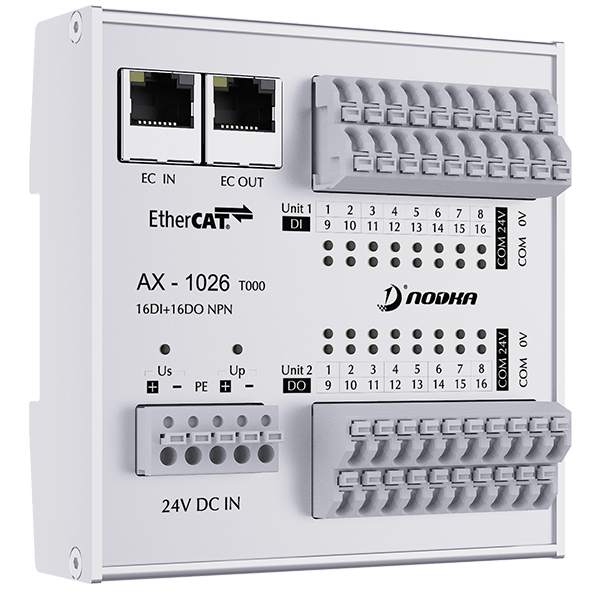

16xDI 10μs / 16xDO, NPN 24VDC, EtherCAT IO module

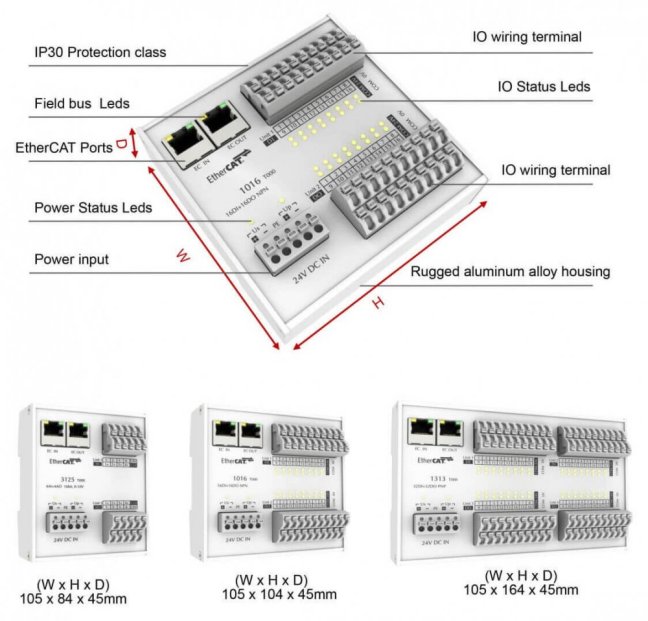

IO module with EtherCAT communication interface, signal and power LEDs and separate power supply for module and signals. Flat design and aluminium rugged chassis with DIN rail mounting. More
Code: AX-1026-T000
0 EUR Exkl. MwSt. (0 EUR Inkl. MwSt.)
Recycling fee 0,04 EUR included in the price.
IO module with EtherCAT communication interface, signal and power LEDs and separate power supply for module and signals. Flat design and aluminium rugged chassis with DIN rail mounting. More
Code: AX-1026-T000
- 16-channel digital input, NPN, 24VDC, filter 10μs
- 16-channel digital output, NPN, 24VDC, 0.5A
- Rugged aluminum alloy housing
- High reliable spring terminal
- Independent power supply for signals and peripherals
- DIN-Rail mount
| Number of Inputs | 16x digital |
| Nominal voltage of the inputs | 24VDC (-15%/20%) |
| Input signal Type | NPN |
| Signal voltage “0” | 18V..30V |
| Signal voltage “1” | 0V..7V |
| Input current | Typically 3ms |
| Input filter | Typically: 10μs |
| Number of Outputs | 16x digital |
| Output signal Type | NPN |
| Output current per channel | Max. 0.5A (short-circuit proof) |
| Reverse voltage protection | Yes |
| Switching times | TON: typically 15μs; TOFF : typically 300μs |
| Distributed Clocks | - |
| Module current consumption | Typically 100mA |
| Electrical isolation | 500V(EtherCAT/field voltage) |
| Operating temperature range | -25°C .. +60°C |
| Storage temperature range | -40°C .. +85°C |
| Relative humidty | 95%, no condensation |
| Dimensions(W x H x D) | 105mm x 104mm x 45mm |
| Weight Approx | 300 g |
| Mounting | DIN-Rail |
| Approvals | CE |
| Degree of protection | IP30 |
